Lozier Multi-Purpose Bracket
Select tip type and depth to find your SKU and price

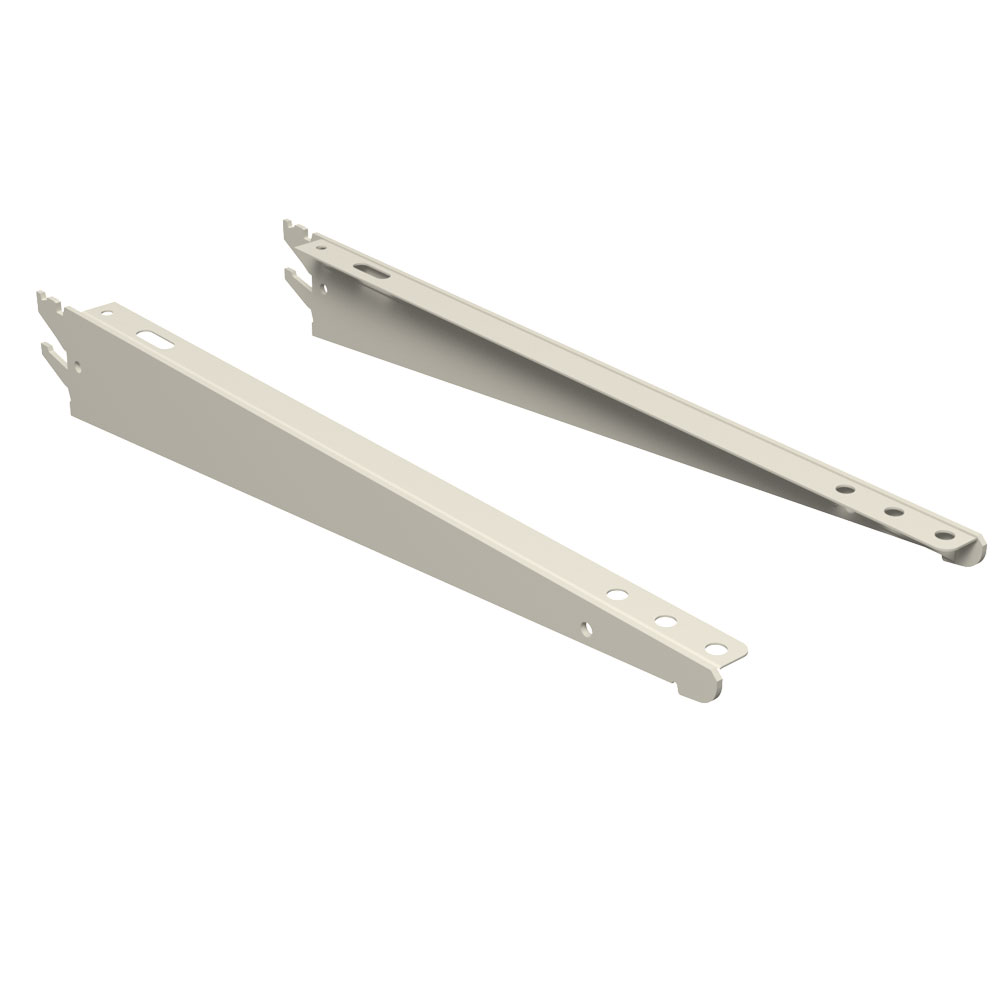

Single angled bracket with hook tip. Ships each.
Standard-finish items usually ship in 1–2 weeks.
About the Lozier Multi-Purpose Bracket
Lozier Multi-Purpose Brackets (MPB) are the correct bracket when your gondola run includes laminated wood shelves, laminated countertops, or wire shelves and baskets that require a dedicated bracket seat rather than a standard steel shelf clip. This configurator consolidates standard angle, flat zero-upslope, and wire versions across sizes 7 through 25 onto one page. Selecting the wrong size or version is the most common ordering error on this component.
Size selection is based on the actual length from the face of the Uprite to the end of the bracket, not the nominal shelf depth. A Size 7 bracket measures 6-1/8 inches actual length. A Size 10 measures 9-1/8 inches, Size 13 measures 11-1/8 inches, Size 16 measures 14-1/8 inches, Size 19 measures 17-1/8 inches, Size 22 measures 20-1/8 inches, and Size 25 measures 23-1/8 inches. Match the bracket size to your laminated shelf or countertop depth, not to your base deck depth, as those two dimensions are often different in counter-height display builds.

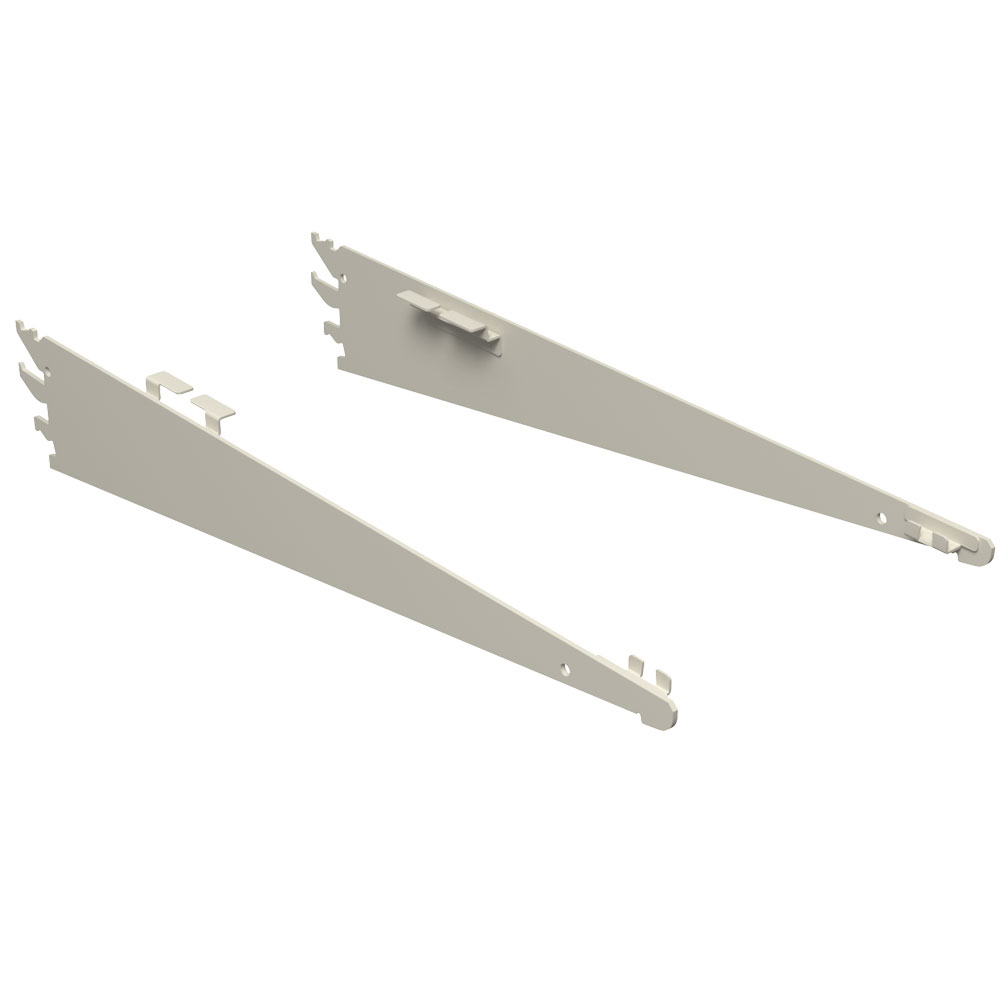

Version selection trips buyers up when they are configuring a service counter or a counter display. The standard MPB version installs at 1.5 degrees up, 17 degrees down, or 30 degrees down. The Flat version (MPBF) installs at zero degrees only and is required for laminated countertops (LCT) and flat laminated wood shelf applications. Flat versions are available in sizes 10, 13, 16, and 19 only. Sizes 7, 22, and 25 have no Flat version in the catalog. Wire versions (MPBW) are paired Left Hand and Right Hand and support wire shelves and baskets rather than laminated surfaces. Laminated countertop styles A and P require one pair of brackets per section; styles E and F require two pairs per section. Finishes present in this configurator include Platinum (PLT) and Cool White (W08) as the most common options, with Charcoal (CHR) and Gray (GRY) appearing on selected SKUs. Non-PLT and non-CHR finishes are Optional Catalog Colors and carry an 8 to 10 week lead time. Call 800-934-6798 to confirm lead time on any time-sensitive order before completing your configuration.
Call 800-934-6798 or email dan@gondolafixtures.com to confirm bracket version, size, and finish availability before placing a large counter or display run order.
Quick Reference
Lozier Multi-Purpose Brackets support laminated shelves, laminated countertops, and wire shelves on Lozier gondola Uprites. Three versions exist: standard angle (MPB), flat zero-upslope (MPBF), and wire (MPBW). Standard and Flat versions are sold individually. Wire versions are sold as a Left Hand and Right Hand pair per the catalog.
Bracket sizing is based on actual length from the Uprite face to the bracket end, not nominal depth. Size 13 has an actual length of 11-1/8 inches. Size 19 has an actual length of 17-1/8 inches. Buyers configuring a service counter must match bracket size to countertop depth, which is typically 3 to 4 inches greater than the base deck depth below it.
Flat Multi-Purpose Brackets (MPBF) are available in sizes 10, 13, 16, and 19 only. Sizes 7, 22, and 25 do not have a Flat version in the Lozier catalog. When configuring laminated countertops that require zero upslope, verify the needed size falls within the available MPBF range before completing the order.
Platinum (PLT) is the Lozier standard finish and typically ships in 1 to 2 weeks depending on SKU and size combination. Cool White (W08), Charcoal (CHR), and Gray (GRY) are Optional Catalog Colors and carry an 8 to 10 week lead time. Confirm finish availability at 800-934-6798 on time-sensitive projects.
Configuration Reference
Lozier Multi-Purpose Brackets support laminated shelves, laminated countertops, and wire shelves on Lozier gondola Uprites. Three versions exist: standard angle (MPB), flat zero-upslope (MPBF), and wire (MPBW). Standard and Flat versions are sold individually. Wire versions are sold as a Left Hand and Right Hand pair per the catalog.
Bracket sizing is based on actual length from the Uprite face to the bracket end, not nominal depth. Size 13 has an actual length of 11-1/8 inches. Size 19 has an actual length of 17-1/8 inches. Buyers configuring a service counter must match bracket size to countertop depth, which is typically 3 to 4 inches greater than the base deck depth below it.
Flat Multi-Purpose Brackets (MPBF) are available in sizes 10, 13, 16, and 19 only. Sizes 7, 22, and 25 do not have a Flat version in the Lozier catalog. When configuring laminated countertops that require zero upslope, verify the needed size falls within the available MPBF range before completing the order.
Platinum (PLT) is the Lozier standard finish and typically ships in 1 to 2 weeks depending on SKU and size combination. Cool White (W08), Charcoal (CHR), and Gray (GRY) are Optional Catalog Colors and carry an 8 to 10 week lead time. Confirm finish availability at 800-934-6798 on time-sensitive projects.
Frequently Asked Questions
What is the difference between the standard MPB, the flat MPBF, and the wire MPBW Multi-Purpose Bracket?
The standard MPB installs at 1.5 degrees up, 17 degrees down, or 30 degrees down and is used with angled laminated shelf and display applications. The Flat version (MPBF) installs at zero degrees only and is required for laminated countertops and flat shelf surfaces. The Wire version (MPBW) is designed to support wire shelves and baskets rather than laminated surfaces and is sold as a Left Hand and Right Hand pair.
How do I pick the right size Lozier Multi-Purpose Bracket for my countertop?
Match bracket size to the depth of the laminated countertop or laminated wood shelf being supported, not to the base deck below it. The catalog lists actual bracket lengths: Size 16 measures 14-1/8 inches actual length, and Size 19 measures 17-1/8 inches. When building a service counter, the countertop depth is typically 3 to 4 inches deeper than the base deck, so the bracket size and deck size will differ.
Lozier Multi-Purpose Bracket size chart: actual lengths by part number
MPB7 is 6-1/8 inches, MPB10 and MPBF10 are 9-1/8 inches, MPB13 and MPBF13 are 11-1/8 inches, MPB16 and MPBF16 are 14-1/8 inches, MPB19 and MPBF19 are 17-1/8 inches, MPB22 is 20-1/8 inches, and MPB25 is 23-1/8 inches. Flat versions are not available for sizes 7, 22, or 25.
How long does it take to get a Lozier Multi-Purpose Bracket in a color other than Platinum?
Any finish outside Platinum (PLT) is an Optional Catalog Color and carries an 8 to 10 week lead time. Cool White (W08), Charcoal (CHR), and Gray (GRY) all fall into this category for Multi-Purpose Brackets. If your project has a firm install date, call 800-934-6798 to verify lead time before ordering a non-PLT finish.
