Rails
Lozier gondola rails are the structural connectors that hold every section run together, and ordering the wrong width or finish against an existing installation creates misalignment that cascades across the entire gondola line. Lozier gondola rails are available in widths of 24, 30, 36, and 48 inches. Rail width must match the section width of the installed Uprites; rails do not have an independent depth dimension. Getting these numbers right before you order is the difference between a clean installation and a costly retrofit.
Read more
Finish selection is the first decision that trips up store planners on rail orders. The two standard finishes with the shortest lead times are Platinum (PLT), the light beige standard used in most legacy installations, and Charcoal (CHR), along with W08 White, which has become common in pharmacy and health and beauty environments. All three are stocked for faster fulfillment. Optional Catalog Colors including GRY, Q88, QL6, SIL, and RBL carry an 8 to 10 week production lead time and should not be ordered against a tight store opening timeline without confirming availability first.
Rail type compatibility is where buyers most often create ordering errors. Top Rails, Center Rails, Bottom Rails, and Splicer Rails are not interchangeable within a section. The Splicer Rail connects two Uprite sections end-to-end and must match the section width exactly. A rail ordered at 36 inches installed in a 48-inch section run will not engage the Uprite slots on both sides, leaving the run structurally incomplete. Always verify the section width of the installed Uprite before selecting rail width. Rail depth must also match or exceed the bracket depth in the same section to maintain the rated load capacity of the shelf above.
Call 800-934-6798 or email dan@gondolafixtures.com to confirm rail type, width, and finish against your existing Lozier installation before placing your order.
Rails are the horizontal backbone that holds back panels in position and distributes merchandise load across the uprite span, every back installation starts with the correct rail selection.
- Four rail types: Top Rail (RT), Center Rail (RC), Bottom Rail (RB), and Splicer Rail (RS)
- Order rails by nominal section width (24, 30, 36, or 48 inches).
- Splicer Rail required for all two-piece back installations: sections 78in tall and taller
- Second Center Rail required for sections 96in to 144in tall (per catalog line 1235)

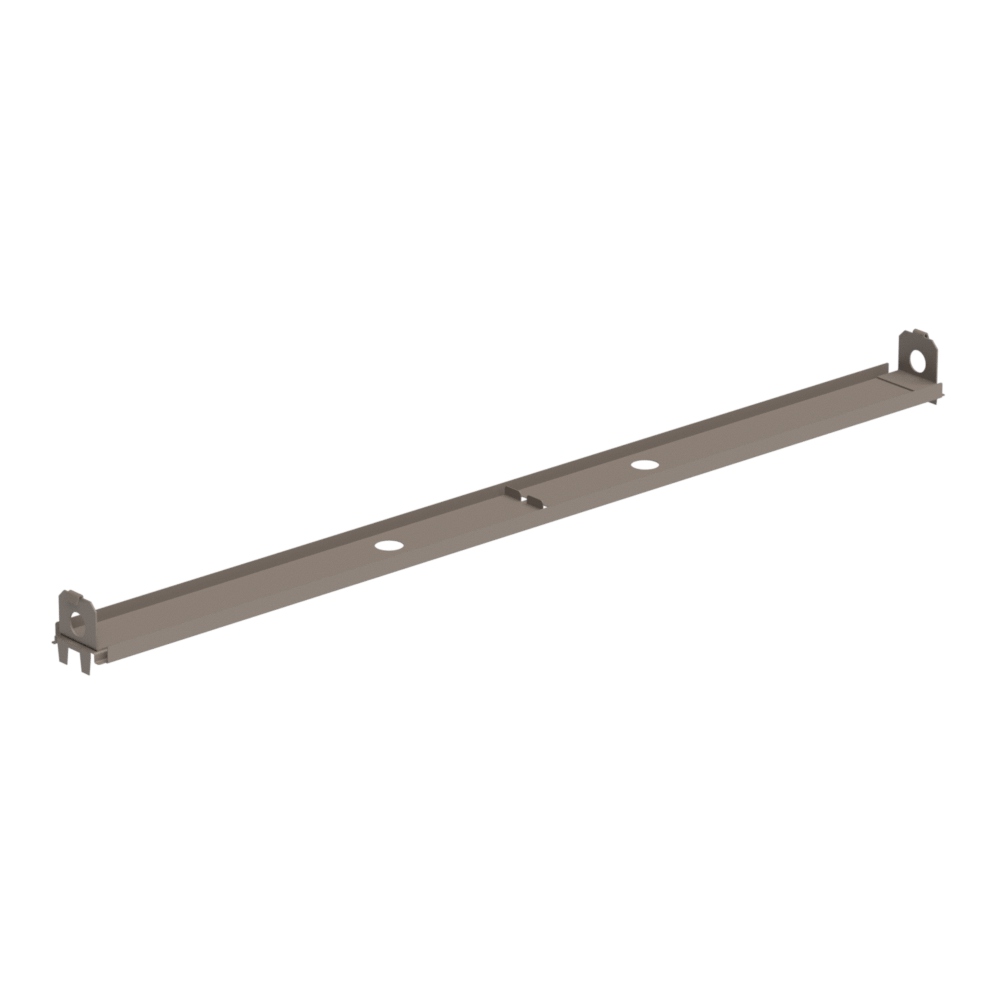

- Heavy Duty Bottom Rail (BRHD) available for higher back-panel load applications; consult Lozier catalog for the section-level rating.

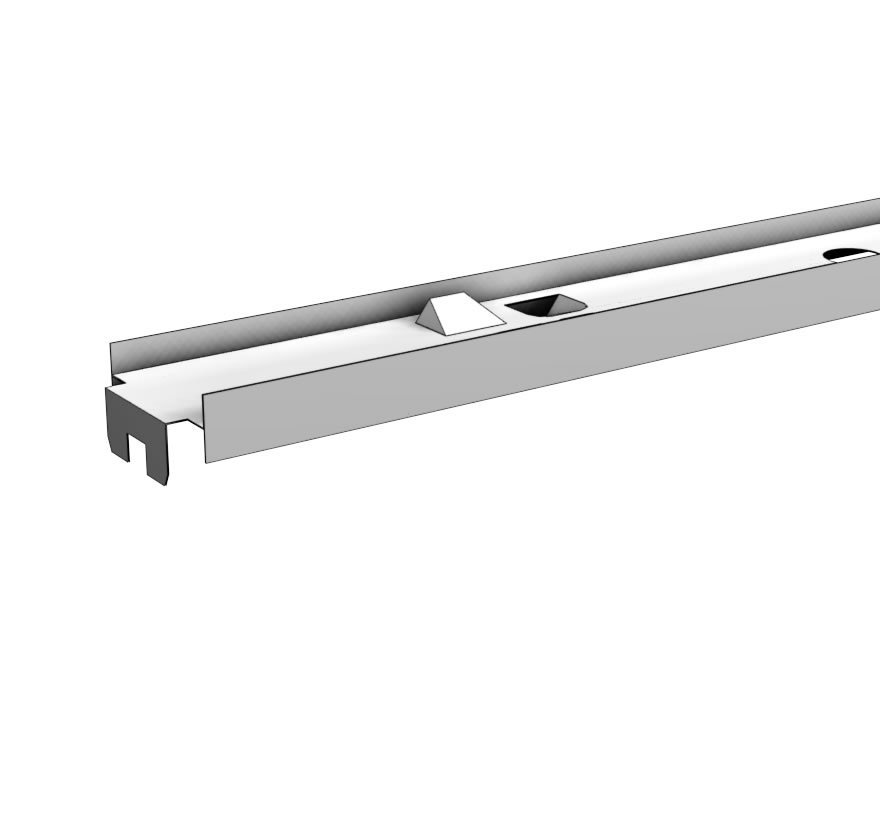

- Center Rails painted random neutral colors and not intended for visible merchandising surfaces

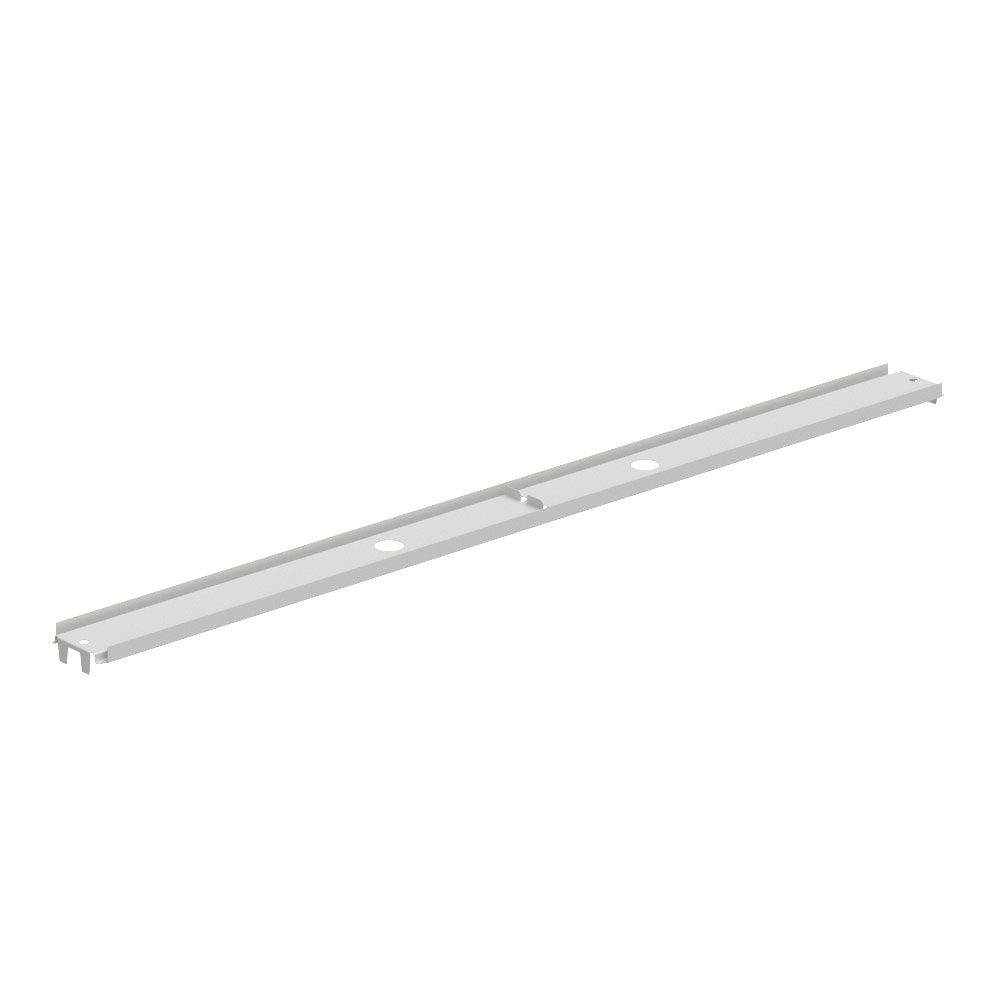

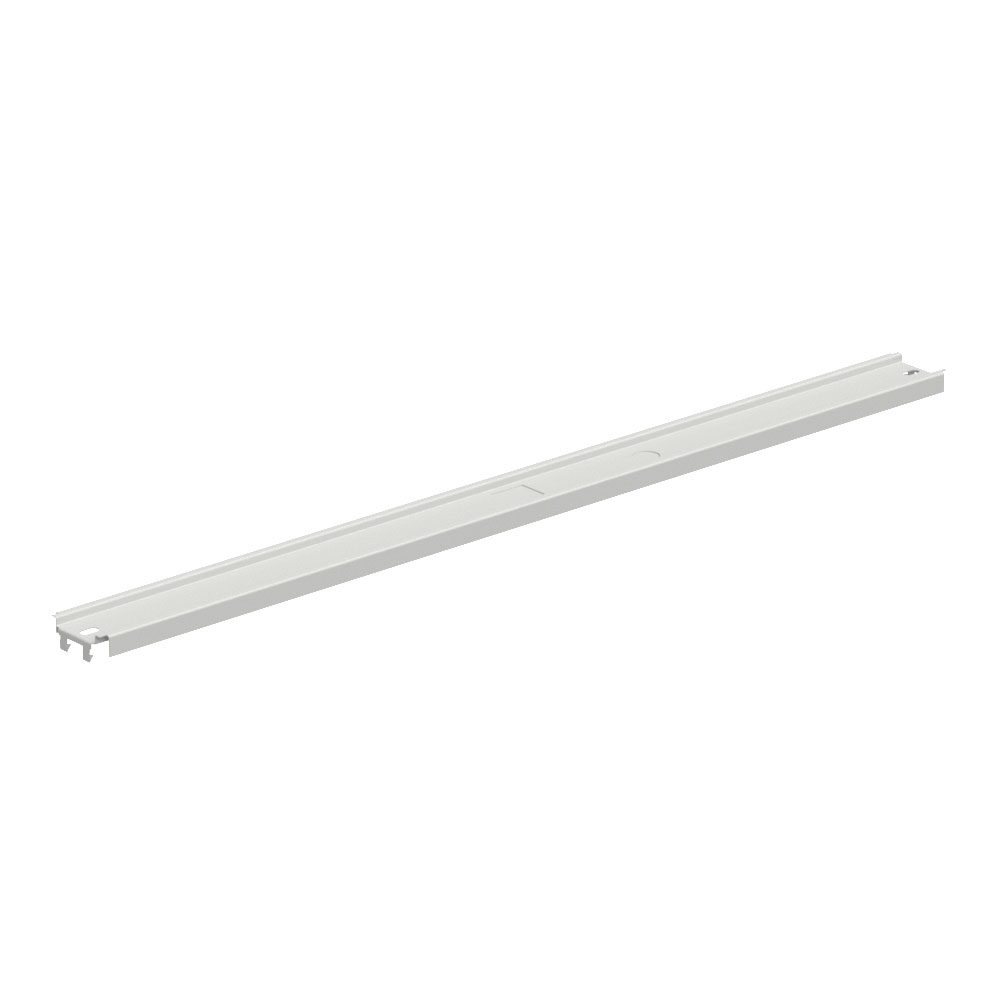

- Standard finish for Top and Bottom Rails: Platinum (PLT)
Configuration Reference
Lozier gondola rails are available in four widths: 24, 30, 36, and 48 inches. Width options are 24, 30, 36, and 48 inches; rails are ordered by section width, not depth. Standard finishes are Platinum (PLT), Charcoal (CHR), and W08 White. These three finishes carry the shortest lead times in this category and are the correct choice for replacement orders against existing store installations.
Splicer Rails must match the width of the Uprite sections they join. A width mismatch prevents full slot engagement on both Uprites and leaves the gondola run without a secure lateral connection. This is one of the most common ordering errors on rail reorders, particularly when a store has mixed 36-inch and 48-inch sections in the same run.
Optional Catalog Colors for Lozier rails include Q88, QL6, RBL, MG1, and QG8, require 8 to 10 weeks of production lead time. These finishes are not stocked at distribution and are produced to order. Do not specify Optional Catalog Colors on time-sensitive installations without a confirmed ship date from the manufacturer.
Rail width must match the section width. A 48-inch section requires 48-inch Top, Center, and Bottom Rails; mixing widths prevents full slot engagement and leaves the run without a secure lateral connection. to cover configurations from health and beauty to grocery and general merchandise applications.
Frequently Asked Questions
What is the difference between a Top Rail, Center Rail, Bottom Rail, and Splicer Rail on a Lozier gondola?
Each rail type serves a distinct structural role in the gondola section. The Top Rail runs along the uppermost connection point between two Uprites, the Center Rail spans the mid-section, and the Bottom Rail anchors the lower run. The Splicer Rail connects two adjacent Uprite sections end-to-end and must match the section width exactly to engage both Uprite slot patterns.
How do I know which width Lozier gondola rail to order for my store?
The rail width must match the section width of the installed Lozier Uprites in your gondola run. Lozier rails in this catalog come in 24, 30, 36, and 48-inch widths. Check your existing section width before ordering, because a rail that is even one size off will not seat correctly in the Uprite slot pattern on both ends.
Lozier gondola rail finish codes for existing store match
The two most common finishes in existing retail installations are Platinum (PLT) and Charcoal (CHR). W08 White is prevalent in pharmacy and health and beauty sections. If your installation uses an Optional Catalog Color such as GRY, Q88, or QL6, expect an 8 to 10 week lead time on replacement rails. Call 800-934-6798 to confirm finish availability before committing to a timeline.
Lozier rail width selection guide for gondola sections
Rail width must match the section width so the rail engages both uprights fully. This catalog covers rail widths of 24, 30, 36, and 48 inches, matching Lozier standard section widths. Order the same width for Top, Center, and Bottom Rails within a section; one Center Rail is required per section, and sections with back panels 96 inches or taller require a second Center Rail per the Lozier catalog. Center Rails reinforce Uprite spacing; shelves engage the Uprite slot pattern directly, not the rail.
