HL Heavy-Load Shelves

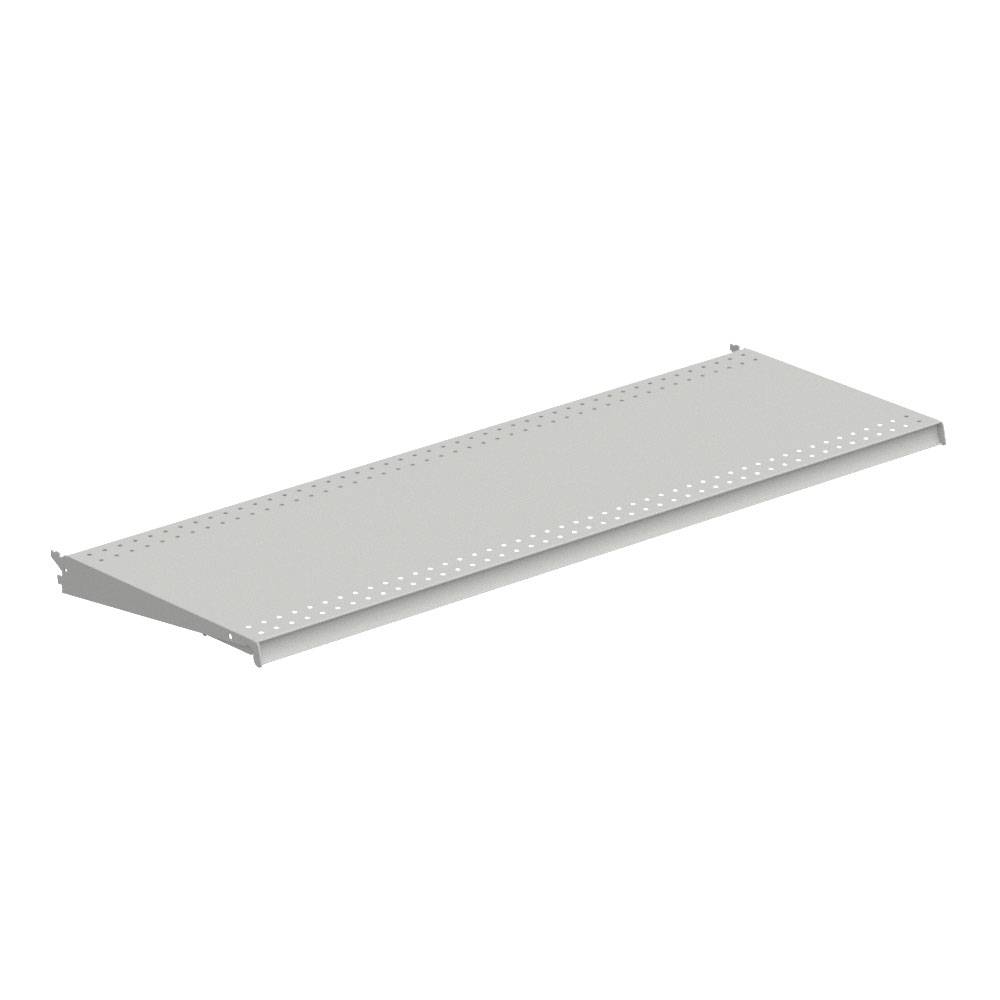

Lozier HL Heavy-Load shelves are gondola shelves for retail sections carrying above-standard product weight per linear foot. GondolaFixtures.com offers HL shelves in two widths, 3 ft (36-inch) and 4 ft (48-inch), and six depths: 16, 19, 22, 25, 28, and 31 inches.
Read more
Available finishes match the standard Lozier six-finish set for structural gondola components: Cool White (W08), Platinum (PLT), Charcoal (CHR), Gray (GRY), Silver (SIL), and White (WHT). Standard-tier finishes typically ship in 1 to 3 business days. Optional Catalog Colors carry an 8 to 10 week lead time.
HL Heavy-Load shelves mount on standard L-Line or Heavy Duty gondola sections. Per the Lozier catalog, the section itself carries the load rating, not the shelf: a standard L-Line section is rated at 12,000 inch-pounds of unbalanced load. To reach Heavy Duty section ratings (20,000 inch-pounds for the Heavy Duty 06 Base configuration; 18,000 inch-pounds for the Heavy Duty Low Base configuration), both Heavy Duty Uprites and Heavy Duty Base Brackets must be installed together in the same section. Mixing a Heavy Duty component with a standard component reduces the section rating to the lower component capacity.
Before ordering HL shelves for an existing installation: confirm your Uprites carry the HD sticker on the uprite side panel, and confirm your Base Brackets carry the HD stamp in the side panel. Lozier Universal Heavy Duty Uprites use the UH_ series designation.
For configuration assistance, finish matching against an existing installation, or lead time confirmation on time-sensitive orders, call 800-934-6798 or email dan@gondolafixtures.com.
More Lozier HL Heavy-Load Shelves
Configuration Reference
- Widths: 3 ft (36 inches), 4 ft (48 inches)
- Depths: 16, 19, 22, 25, 28, 31 inches
- Standard finishes: Cool White (W08), Platinum (PLT), Charcoal (CHR), Gray (GRY), Silver (SIL), White (WHT). Ships 1 to 3 business days.
- Optional Catalog Colors: 8 to 10 week lead time
- Mounts on: standard L-Line or Heavy Duty gondola sections
- To reach HD section ratings: both HD Uprites and HD Base Brackets required
- Heavy Duty 06 Base capacity: 20,000 inch-pounds unbalanced load
- Heavy Duty Low Base capacity: 18,000 inch-pounds unbalanced load
- Standard L-Line reference: 12,000 inch-pounds unbalanced load
- Heavy Duty identification: HD sticker on Uprite side panel; HD stamp in Base Bracket side panel; Universal Heavy Duty Uprites use the UH_ series designator
Frequently Asked Questions
What widths and depths are available for Lozier HL Heavy-Load shelves?
HL shelves are available in 3 ft (36-inch) and 4 ft (48-inch) widths, with depths of 16, 19, 22, 25, 28, and 31 inches.
What finishes are available for Lozier HL Heavy-Load shelves?
HL shelves ship in the standard Lozier six-finish set: Cool White (W08), Platinum (PLT), Charcoal (CHR), Gray (GRY), Silver (SIL), and White (WHT). Standard finishes typically ship in 1 to 3 business days. Optional Catalog Colors are available with an 8 to 10 week lead time.
Can I install Lozier HL Heavy-Load shelves on my existing standard Uprites?
Yes. HL shelves mount on standard L-Line Uprites and Base Brackets, and the section follows standard L-Line Uprite load ratings. For Heavy Duty section ratings, both Heavy Duty Uprites and Heavy Duty Base Brackets must be used together in the same section. Refer to the Lozier install documentation that ships with your order for the specific unbalanced-load limit at your section height and base type.
How do I identify a Heavy Duty Uprite or Base Bracket in an existing installation?
Heavy Duty parts are identified by the part number itself. Heavy Duty Uprites and Heavy Duty Base Brackets use the HD prefix or HD designation in the SKU, and Universal Heavy Duty Uprites use the UH_ series. Verify Heavy Duty status by matching the SKU against the Lozier catalog or your order paperwork.
What is the rated capacity of a Heavy Duty Lozier gondola section?
Heavy Duty configurations (06 Base and Low Base) support higher unbalanced loads than Standard L-Line sections. Refer to the Lozier install documentation shipped with your order for the specific in-lb limit at your section height and base type.
What lead time should I expect for Lozier HL Heavy-Load shelves?
Standard finishes typically ship in 1 to 3 business days. Optional Catalog Colors carry an 8 to 10 week lead time. Lead times vary by SKU, depth, and configuration; call 800-934-6798 to confirm before finalizing time-sensitive orders.
