Base Brackets
Base brackets connect uprights to base decks and carry the structural load of everything above them. Available in standard and heavy duty versions with 06 (8" high) or low base (6" high) heights, and deck depths from 13" to 31". Spring-locking design locks positively into the uprite slot. A properly engaged latch tab sits at the back of the slot. Order painted (PTD) finish for standard applications or Charcoal (CHR) when using open base fronts.
Common SKU Reference
Base bracket SKUs follow this format: BB + deck depth + base height + S (spring locking) + finish. Standard finish is PTD (Painted Random). Order CHR (Charcoal) when using open base fronts.
| SKU | Type | Base Height | Deck Depth | Note |
|---|---|---|---|---|
| BB1306S PTD | 06 Standard | 8 in (06) | 13 in | |
| BB1606S PTD | 06 Standard | 8 in (06) | 16 in | |
| BB1906S PTD | 06 Standard | 8 in (06) | 19 in | |
| BB2206S PTD | 06 Standard | 8 in (06) | 22 in | |
| BB2506S PTD | 06 Standard | 8 in (06) | 25 in | |
| BB2806S PTD | 06 Standard | 8 in (06) | 28 in | Rated Heavy Duty |
| BB3106S PTD | 06 Standard | 8 in (06) | 31 in | Rated Heavy Duty |
| BB1306S PTD | LB Low Base | 6 in (LB) | 13 in | |
| BB1606S PTD | LB Low Base | 6 in (LB) | 16 in | |
| LE BB 06 PTD | Load Easer | 06 or LB | 13-31 in | 1,100 lbs (13-19in) / 1,300 lbs (22-31in) per deck |
PTD = Painted Random (standard, matches section finish). CHR = Charcoal, required when ordering open base fronts. The S in the SKU = Spring Locking (standard on all brackets). Contact us to confirm availability and pack quantities.
Base brackets are the load-bearing foundation of every gondola run spec them right or the entire fixture is unstable.

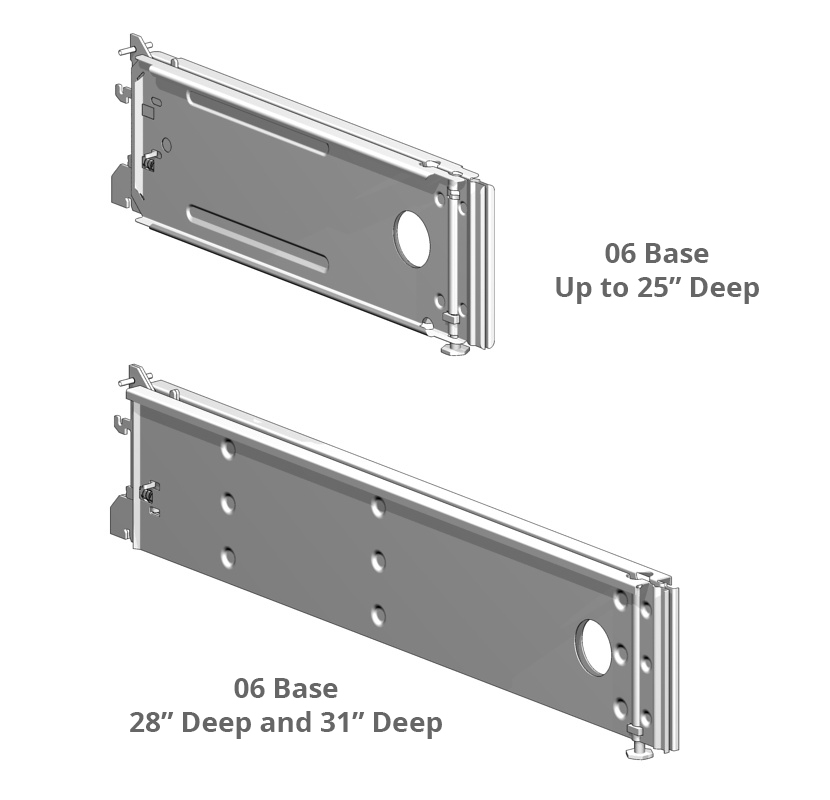

- Two base types: 06 Standard Base (8in height) and LB Low Base (6in height)
- Available depths: 13, 16, 19, 22, 25, 28, and 31in
- For heavy-load applications, the Load Easer Base Bracket (LE BB) is rated at 1,100–1,300 lbs per deck depending on depth
- Spring-locking integral latch installs and removes without tools
- Packaged in quantities of 5 or 10 per box depending on depth
- Standard finishes (Platinum, Cool White, Charcoal Black, Gray): 1-2 week lead time
- Compatible with all Lozier gondola uprights
Compatibility: Lozier base brackets lock into Lozier uprights using an integral spring latch. Compatible with all standard Lozier upright heights (48in–120in). Match the bracket depth to the base deck depth a BB2206S bracket pairs with a 22in base deck. For heavy-load specifications, the Load Easer Base Bracket (LE BB) is rated at 1,100–1,300 lbs per deck; verify upright load ratings before specifying. Engineered for Lozier gondola uprights and rail brackets. Compatibility with other manufacturers' systems including Madix and Storflex is not guaranteed and should be verified before ordering.
Designed for: Grocery store island runs, wall gondola sections, convenience store configurations, drug store fixture runs, and any environment requiring a stable, freestanding gondola fixture with a defined base tier.
