What is the difference between a Top Rail, Center Rail, Bottom Rail, and Splicer Rail on a Lozier gondola?

Each rail type serves a distinct structural role in the gondola section. The Top Rail runs along the uppermost connection point between two Uprites, the Center Rail spans the mid-section, and the Bottom Rail anchors the lower run. The Splicer Rail separates and supports two stacked back panels in two-piece back applications (78in and taller sections) and must match the section width.

How do I know which width Lozier gondola rail to order for my store?

The rail width must match the section width of the installed Lozier Uprites in your gondola run. Lozier rails in this catalog come in 24, 30, 36, and 48-inch widths. Check your existing section width before ordering, because a rail that is even one size off will not seat correctly in the Uprite slot pattern on both ends.

Lozier gondola rail finish codes for existing store match

The two most common finishes in existing retail installations are Platinum (PLT) and Charcoal (CHR). W08 White is prevalent in pharmacy and health and beauty sections. If your installation uses an Optional Catalog Color such as GRY, Q88, or QL6, expect an 8 to 10 week lead time on replacement rails. Call 800-934-6798 to confirm finish availability before committing to a timeline.

Lozier rail width selection guide for gondola sections

Rail width must match the section width so the rail engages both uprights fully. This catalog covers rail widths of 24, 30, 36, and 48 inches, matching Lozier standard section widths. Order the same width for Top, Center, and Bottom Rails within a section; one Center Rail is required per section, and sections with back panels 96 inches or taller require a second Center Rail per the Lozier catalog. Center Rails reinforce Uprite spacing; shelves engage the Uprite slot pattern directly, not the rail.

Rails

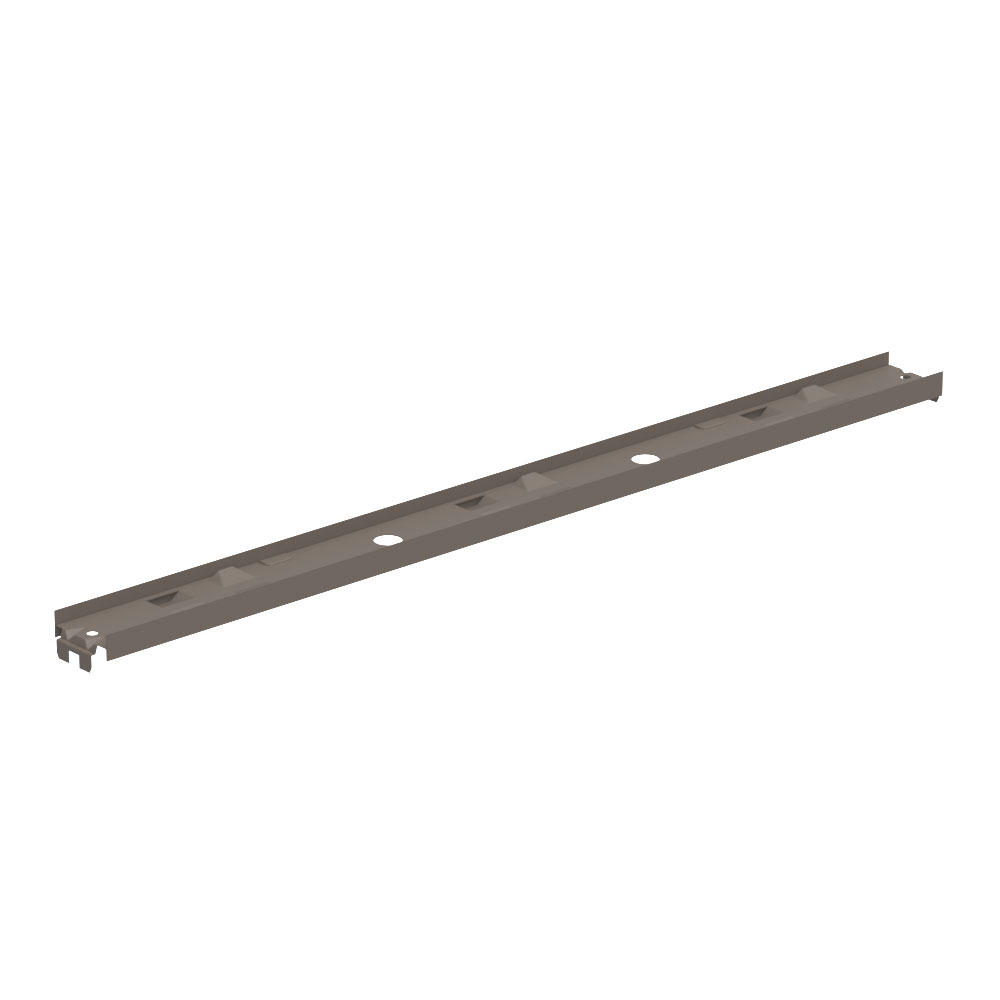

Lozier Splicer Rail (R-S), 36"W - Cool White

SKU: R3S.W08

Part of the Lozier Rail Splicers product family

Ships in 1-3 business days

$12.22per piece

Total: $12.22

Usually ships in 1–2 weeks

Custom color match available. 1 retailer-specific color on file. Request a quote to spec a Pantone or paint-chip match.

QUANTITY

Request a custom quote

Not sure this is the right part?

Real Lozier expertise on the phone in minutes. Free layout planning and multi-store quote coordination.

800-934-6798 Contact Us ›

Shipping & Returns

Freight: We quote every order individually to get you the best rate on LTL freight based on your ZIP, load size, and delivery type. You’ll see the confirmed freight cost within one business day of submitting your quote request, before anything is authorized. Delivery options: dock, curbside, inside, liftgate, delivery appointment, or residential.

Returns: No returns will be accepted without a Return Goods Authorization (RGA) and original packaging. Items shipped factory-direct are considered special order and are not returnable. All other approved returns are subject to a 35% restocking fee plus outbound and return freight where applicable.

Full Terms of Sale ›

Width36 in

FinishCool White (W08)

UnitEA

Lozier Rail, 36"W, Cool White finish. Compatible with standard Lozier gondola shelving uprights and base brackets.

All Variants

3 Ft. Wide

SKU	Finish	Price	Qty
R3S.W08	W08 · Cool White	$12.22

4 Ft. Wide

SKU	Finish	Price	Qty
R4S.W08	W08 · Cool White	$12.22
